Wall Mount Lithium Rechargeable Lifepo4 Battery 5KWH 48v 100ah 40KG

    Buy cheap Wall Mount Lithium Rechargeable Lifepo4 Battery 5KWH 48v 100ah 40KG from wholesalers

    Buy cheap Wall Mount Lithium Rechargeable Lifepo4 Battery 5KWH 48v 100ah 40KG from wholesalers
    • Buy cheap Wall Mount Lithium Rechargeable Lifepo4 Battery 5KWH 48v 100ah 40KG from wholesalers

    Wall Mount Lithium Rechargeable Lifepo4 Battery 5KWH 48v 100ah 40KG

    Ask Lasest Price
    Brand Name : Archibald
    Model Number : XDLP748-100
    Supply Ability : 100000 Unit/Units per Month lifepo4 battery pack 72v 120ah
    Price : $880.00/Units 1-49 Units
    • Product Details
    • Company Profile

    Wall Mount Lithium Rechargeable Lifepo4 Battery 5KWH 48v 100ah 40KG

    Automotive Grade Lithium Battery:

    Ampere Time lithium iron batteries have exceptiol quality since they are manufactured by Automotive Grade LiFePO4 Cells with higher energy density, more stable performance & greater power. Highest-level safety based on UL Testing Certificate for the cell inside the battery. With no acid in the battery, you're able to safely mount in any position. This makes li-iron batteries perfect for solar home, RV, campers, golf cart, motor homes, off-grid applications.


    Wall Mount Lithium Rechargeable Lifepo4 Battery 5KWH 48v 100ah


    Item:51.2V 100AH lifepo4 battery module, Wall mountable, Power wall.

    Dimension: 620*370*205mm (Length*Width*Thickness)

    Weight: 40KG

    Max Charge Current:100A

    Max continuous discharge current: 100A

    Max power output: 5.12KWH

    Communication port: On demand.

    LED Screen: YES

    Battery Management System


    S/Nfunction nameFunction settingCell voltage alarmSettings ValueReference setting range
    1Monomer over-voltage protectionTurn onOver-voltage protection voltage3750mV3000~6000mV
    2Cell under-voltage protectionTurn onUnder-voltage protection voltage2700mV100~3200mV
    3Battery over-voltage protectionTurn onOver-voltage protection voltage57.6V40.0V~60.0V
    4Battery under-voltage protectionTurn onUnder-voltage protection voltage43.2V30.0V~60.0V
    5Cell high temperature protectionTurn onCell high temperature protection65℃30℃~90℃
    6Charging low temperature protectionTurn onCharging low temperature protection0℃-5~5℃
    7Discharge low temperature protectionTurn onDischarge low temperature protection-20℃-40~-10℃
    8Overcurrent protectionTurn onOvercurrent protection105A0A~110A

    ATTENTION:

    We can design 12V LiFePO4 with same VRLA case size to replace SLA battery !

    Welcome customize shell,weight, size,MBS,technology,etc !

    Voltage range: 3.2V - 12V – 24V – 48V – 72V – 80V– 96V– 144V – 300V – 720V

    Capacity range: 7Ah - 100Ah - 200Ah- 300Ah-....1000Ah


    Parameter

    Item48V 100AH lifepo4 battery pack (Customizable LCD)
    BrandArchibald
    TypeLithium Iron Phosphate
    Voltage Nominal48V (Customized 3.2V 12V 24V 36V 48V 72V …720V)
    Capacity Nominal100AH
    BMS Specs50-100A(Customized)
    Max Charge Current50A Or Customized

    Max Continuous

    Discharge Current

    50A Or Customized
    Weight63kg Or Customized
    Dimension442*410*221mm Or Customized
    Operating Temperature RangeCharge:0°C to 45°C
    Discharge: -20°C to 60℃
    Life CycleMore than 2000cycles @1.0C 100% DOD
    PackageABS/Metal Case Or Customized
    CustomizedShell, Size, Weight, Color, Label, Current, Technology,etc can be customized

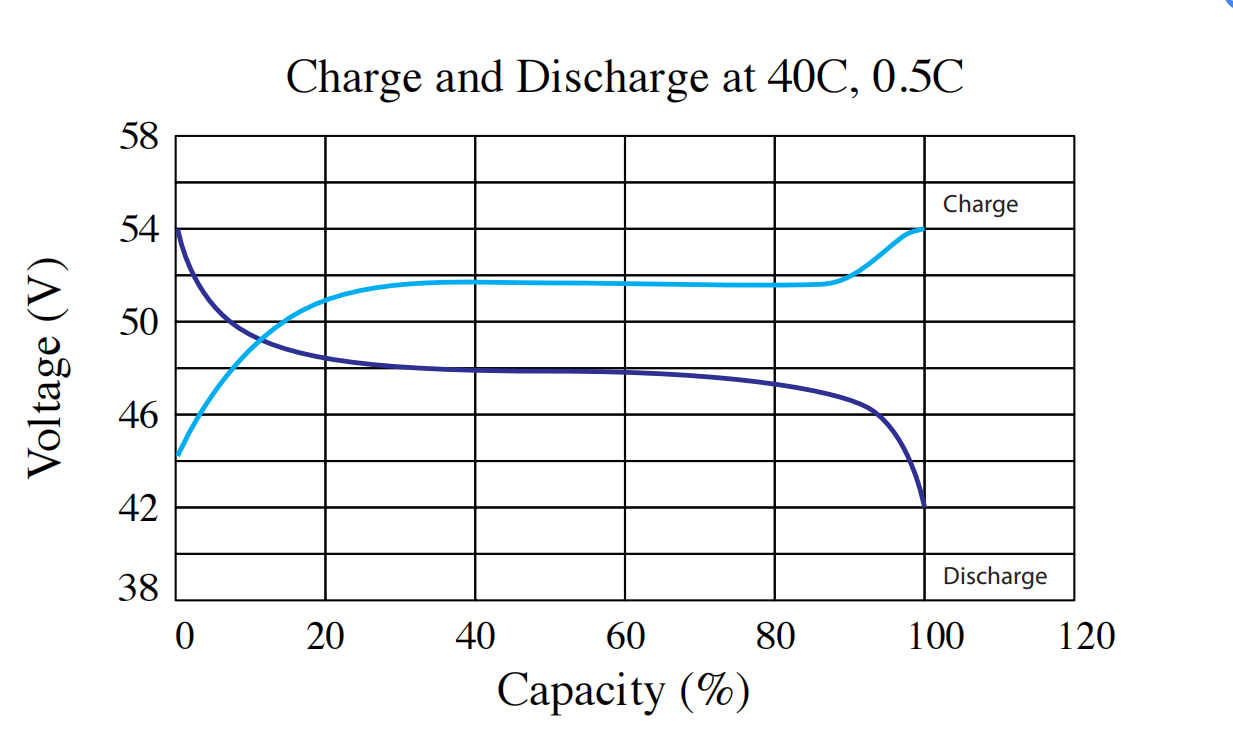

    Performance Curves
