Long Cycle 5.12KWH Lifepo4 48v 100ah Battery 200ah XD BATTERY

    Buy cheap Long Cycle 5.12KWH Lifepo4 48v 100ah Battery 200ah XD BATTERY from wholesalers

    Buy cheap Long Cycle 5.12KWH Lifepo4 48v 100ah Battery 200ah XD BATTERY from wholesalers
    • Buy cheap Long Cycle 5.12KWH Lifepo4 48v 100ah Battery 200ah XD BATTERY from wholesalers

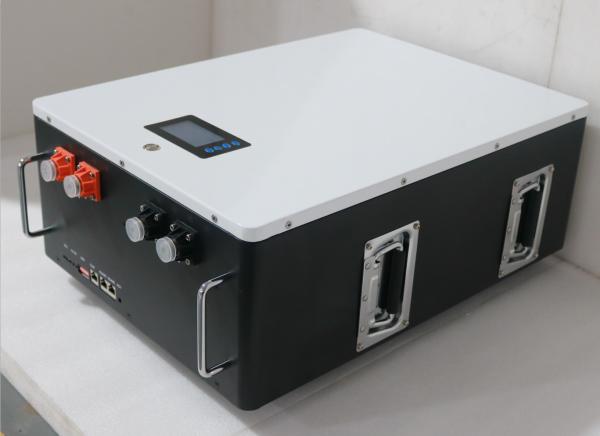

    Long Cycle 5.12KWH Lifepo4 48v 100ah Battery 200ah XD BATTERY

    Ask Lasest Price
    Brand Name : XD BATTERY
    Certification : MSDS,UN38.3, UL1642, CE,IEC
    Price : Negotiable
    Delivery Time : 2~4weeks for samples; 4~6weeks for mass production
    Payment Terms : L/C; TT
    Supply Ability : 450Mwh/year
    • Product Details
    • Company Profile

    Long Cycle 5.12KWH Lifepo4 48v 100ah Battery 200ah XD BATTERY

    Features

    • More than 8000 Cycles

    • Battery modules available for parallel and series for higher voltage and capacity

    • BMS Passive cell balance funciton

    • IP66, IP67, water proof, dust proof, Temperature monitoring

    • Customization for Size and Discharge and charge rate

    • Free of Maintenance, contains no poisonous material

    • No leakage, no hazardous chemistry

    • Quick delivery

    • Lighter in weight, smaller in size to save space.

    • Powerfull to increase robust operation for your marine boat or RV

    • Fast charging and high power discharge rate available

    • No need to add water nor worry about maintenance.


    Product Description

    Our rv battery lithium ion is a lithium deep cycle battery with a capacity of 5.12KWH 48V. This rv battery lithium ion is a lithium ion rv battery. Long-life rv lithium battery pack is expected to replace lead-acid battery packs in solar systems and electric vehicles. The rv lithium battery pack is powerful, long-lasting, and has a long cycle life. In renewable energy applications, a rv lithium battery pack is used as a lithium storage battery. Most basic solar charge controllers can easily charge rv lithium battery pack. The voltages required are quite similar to those required by AGM batteries (a type of sealed lead-acid battery). The BMS of rv lithium battery pack also ensures that the battery cells receive the correct voltage, that they are not overcharged or overdischarged, that they are balanced, and that the cell temperature stays within acceptable ranges while being charged.


    A lithium storage battery long life lithium battery is easier to charge in many respects than a lead-acid battery: lithium storage battery long life lithium battery charges as long as the charge voltage is strong enough to transport ions. Lithium-ion batteries don't mind if they aren't fully charged; in fact, if they aren't, they last longer. There is no sulphation, no equalization, the absorption time is irrelevant, the battery cannot be overcharged, and the BMS ensures that everything stays within reasonable limits.



    Parameter
    Serial numberprojectGeneral parameters
    1Number of series16S
    2Rated voltage51.2V or 48V
    3End of discharge voltage43.2V or
    4Charging voltageRecommend 56.4V (56V – 58.4V)
    5Internal resistance (battery pack)≤100mΩ
    6Self-discharge rate≤2%/month
    7range of working temperature
    (≤95%R.H.)
    0~65℃ charge
    20~65℃ discharge
    8Storage temperature range
    (≤95%R.H.)
    -40~70℃
    9Positive and negative lead wayTerminal 4P*1 Fence terminal*1
    10Display screenLED display, four physical buttons
    11Protective functionOvercharge, over discharge, short circuit, overload, over temperature, etc.
    12Shipment product charge50% power when delivery
    13Packing materialCarton or Wooden box

    Rv lithium battery pack lithium storage batteries are easy to store, even for longer durations, due to their low self-discharge rate. A rv lithium battery pack, lithium storage battery can be stored for a year with no trouble; just make sure it is charged before doing so. A percentage of 50-60% is excellent, as this will provide the battery a long period before self-discharge gets the Voltage way too close to the critical threshold. If you need to store batteries for longer periods, be sure to simply disconnect all wires from them. That way there can not be any stray loads that slowly discharge the rv lithium battery pack lithium storage battery.

    Battery Management System

    S/Nfunction nameFunction settingCell voltage alarmSettings ValueReference setting range
    1Monomer over-voltage protectionTurn onOver-voltage protection voltage3750mV3000~6000mV
    2Cell under-voltage protectionTurn onUnder-voltage protection voltage2700mV100~3200mV
    3Battery over-voltage protectionTurn onOver-voltage protection voltage57.6V40.0V~60.0V
    4Battery under-voltage protectionTurn onUnder-voltage protection voltage43.2V30.0V~60.0V
    5Cell high temperature protectionTurn onCell high temperature protection65℃30℃~90℃
    6Charging low temperature protectionTurn onCharging low temperature protection0℃-5~5℃
    7Discharge low temperature protectionTurn onDischarge low temperature protection-20℃-40~-10℃
    8Overcurrent protectionTurn onOvercurrent protection105A0A~110A

    Performance Curves
    XD Battery is professional in lithium iron phosphate battery and lead acid battery, if you are looking for lifepo4 battery manufacturer and supplier, XD must be your best choice. We provide 12V, 24V, 48V lifepo4 battery with complete capacity, customized needs also can be accepted. Wholesale lifepo4 battery from XD.
