Rechargeable 100ah Battery Lifepo4 12 Volt Deep Cycle

    Buy cheap Rechargeable 100ah Battery Lifepo4 12 Volt Deep Cycle from wholesalers

    Buy cheap Rechargeable 100ah Battery Lifepo4 12 Volt Deep Cycle from wholesalers
    • Buy cheap Rechargeable 100ah Battery Lifepo4 12 Volt Deep Cycle from wholesalers

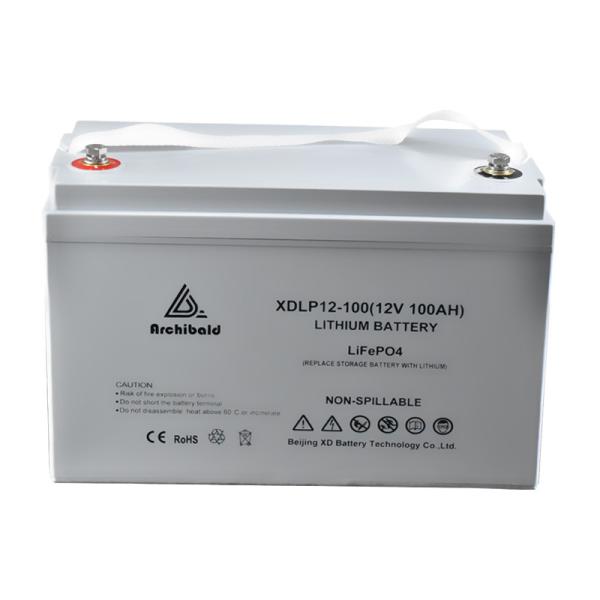

    Rechargeable 100ah Battery Lifepo4 12 Volt Deep Cycle

    Ask Lasest Price
    Brand Name : Archibald Battery
    Model Number : XDLP12-100
    Certification : CE ISO RoHS MSDS
    Price : $250.00 - $350.00/Pieces
    Supply Ability : 100000 Piece/Pieces per Month 12v 100ah lifepo4 4000 cycles battery
    • Product Details
    • Company Profile

    Rechargeable 100ah Battery Lifepo4 12 Volt Deep Cycle

    The Ionic Deep Cycle Battery has a cycle life of 3,000 cycles or about 10 calendar years. Our lithium-ion batteries have a usable capacity of 99% compared to 50-60% for traditional lead-acid batteries]. LithiumHub Deep Cycle batteries function in the widest range of temperatures with a discharge temperature range (Functional) of –20°C to 60°C (–4°F to 140°F) and a charge temperature range of 0°C to 45°C (32°F to 113°F). Automatically detects if batteries are too cold to take a charge.

    Basic Electrical Specification

    Nominal Voltage12.8 V
    Nominal Capacity105 Ah
    Energy1344 Wh
    Resistance≤0.5mΩ
    Efficiency99%
    Self Discharge≤3% per month

    Charge Specification

    Recommended Charge Current25A - (Range: 0.2C-0.5C)
    Maximum Charge Current100 A (1C)
    Recommended Charge Voltage14.6 V
    BMS Charge Voltage Cut-Off14.8 V (3.9 ±0.025 vpc) (1.1 ±0.4 s)
    Reconnect Voltage14.2 V (3.8 ±0.05 vpc)
    Balancing Voltage13.62 V (3.6 ±0.025 vpc)

    Discharge Specification

    Maximum Continuous Discharge Current100A (150A BMS)
    Peak Discharge Current250A(3-5s)
    BMS Discharge Current Cut-Off450A(300ms)
    Recommended Low Voltage Disconnect10.5 V
    BMS Discharge Voltage Cut-Off9.4 V (2.0 ±0.08 vpc) (140 ±60 ms)
    Reconnect Voltage10.2 V (2.3 ±0.1 vpc)
    Short Circuit Protection200-300 µs

    Temperature Specification


    Discharge Temperature-4 to 130 ºF (-20 to 55 ºC)
    Charge Temperature32 to 130 ºF (0 to 55 ºC)
    Storage Temperature - 1 month-4 to 113 ºF (-20 to 45 ºC)
    Storage Temperature - 1 year32 to 95 ºF (0 to 35 ºC)
    BMS High Temperature Cut-Off176 ºF (80 ºC)
    Reconnect Temperature122 ºF (50 ºC)
    BMS Low Temperature Cut-Off (Charging)32 ºF (0 ºC)
    Reconnect Temperature (Charging)41 ºF (5 ºC)

    ATTENTION:
    We can design 12V LiFePO4 with same VRLA case size to replace SLA battery !
    Welcome customize shell,weight, size,MBS,technology,etc !
    Voltage range: 3.2V - 12V – 24V – 48V – 72V – 80V– 96V– 144V – 300V – 720V
    Capacity range: 7Ah - 100Ah - 200Ah- 300Ah-....1000Ah
    Recommend Products
    We Choose the Best BMS to Protect the Battery
    Bluetooth Funciton Display the Battery Parameters in Real Time



    Our Products Passed the certifications of CE / ISO9001 / ISO14001 / Rohs
